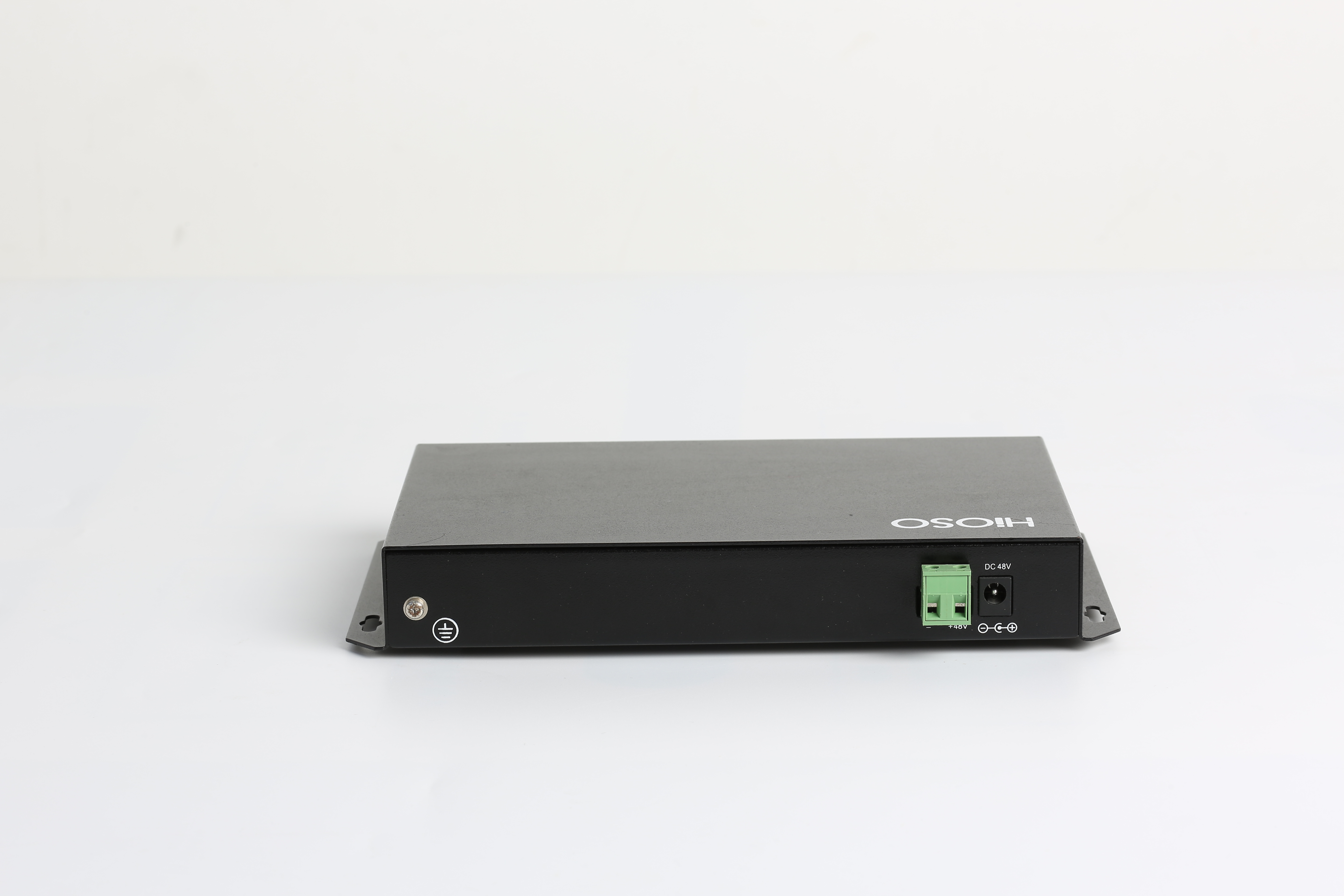

Black 1U Rack HiOSO Power Over Ethernet Switch 10 Port Gigabit

HiOSO Technology Co., Ltd.
Contact Now

Black 1U Rack HiOSO Power Over Ethernet Switch 10 Port Gigabit

Brand Name : Hioso

Model Number : Foway2510PFS

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs/month

Delivery Time : 2-12 work days

Packaging Details : 38X24X18 CM

Product Name : Poe switch

Poe : 8 Poe ports

Port : 2 sfp ports

Transmission : CAT5 : 100M

Humidity : 5%~90%

Installation : 1U rack

Contact Now

10 Ports Security PoE Switch 8 1000M RJ45 + 2 1000M Sfp Uplink Ports

Overview

HiOSO Foway2510PFS series 10 ports 1000M Security Industrial PoE Ethernet Switches, supply 8 10/100/1000M RJ45 PoE ports and 2 1000M SFP cascaded/ring network uplink ports ; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.

Character

  • Support 8 10/100/1000M RJ45 PoE ports and 2 1000M SFP ports ring network/cascaded Uplink,SFP port supports hot swap (support copper SFP)
  • Each PoE port supports auto detect the powered device
  • Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
  • Support each port full rate, full-duplex non-blocking forwarding
  • Support WEB management and SNMP (optional)
  • Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
  • Supply redundant dual power input ports, enhance reliability
  • Metal casing with Wall mounting design , better for heat dissipating and installation

Technical Specification

Parameter Specification
PoE

8 PoE/PSE ports, support IEEE802.3af 15.4W / IEEE802.3at 30W

Working mode:auto detect powered device,stop powering if not PD device

Wavelength 850nm/1310nm/1490nm/1550nm/
Transmission distance 1000M Fiber,multi-mode:220m(fiber size 62.5/125μm)/550m(fiber size 50/125μm); Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M
Ports

8 1000M RJ45 ports (POE/PSE): 10/100/1000Mbps

2 1000M SFP ports: 1 Gbps, 1000M SFP / 1000M Copper SFP

MAC 16K
Buffer memory space 2Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power

DC48V dual input redundant backup (external power)

AC110V/220V@50HZ/60HZ&DC48V dual input redundant backup (inside power)

Power consumption Whole device:7.5W POE/PSE: maximum240W
Installation Wall mounting type (external power), desk type/1U rack (inside power)
Dimension

30mm (H)×219mm(W)×119mm (D) (external power)

44mm (H)×276mm(W)×190mm (D) (inside power)

Order information

No Type NMS Ports PoE Output Power / Power supply
1 Foway2510PFS-8AF NO 8 1000M PoE+2 1000M SFP IEEE802.3af 15.4W, total 125w;external DC48V
2 Foway2510PFS NO 8 1000M PoE+2 1000M SFP IEEE802.3af/at 15.4W/30W, total 125w;DC48V
3 Foway2510PFS-240W NO 8 1000M PoE+2 1000M SFP IEEE802.3af/at 15.4W/30W, total 240w;DC48V
4 Foway2510PFSP-8AF NO 8 1000M PoE+2 1000M SFP IEEE802.3af 15.4W, total 125w;inside AC220V
