FTTH FTTO FTTX Epon E Gpon Plastic Casing XPON 10/100/1000Mbps

Product Categories
HiOSO Technology Co., Ltd.
Contact Now

FTTH FTTO FTTX Epon E Gpon Plastic Casing XPON 10/100/1000Mbps

Brand Name : Hioso

Model Number : XPON 1 GE ONU

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, D/P

Supply Ability : 5000pcs/month

Delivery Time : 3-11 working days

Packaging Details : Standard packing

Product name : Wifi ONU

Colour : White

Ports : 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector

Rate : 10/100/1000Mbps

Type : FTTx Solutions

Temperature : 0℃～50℃

Contact Now

Plastic Casing 1GE GPON XPON ONU FTTH FTTO Solution Cost-Effective Access Gpon Epon Olt

XPON 1GE ONU

Overview

  • 1GE ONU is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access.
  • 1GE ONU is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
  • 1GE adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
  • 1GE is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
  • 1GE is designed by Realtek chipset 9601D

Feature

  • Supports Dual Mode (can access GPON/EPON OLT).
  • Supports SFU and HGU of EPON CTC 3.0 standard.
  • Support NAT, Firewall function.
  • Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
  • Support IPv4/IPv6 dual stack
  • Support IGMP transparent/snooping/proxy
  • In compliant with ITU-T G.984.x and IEEE802.3ah standard
  • Compatible with popular OLT (HW, ZTE, FiberHome,Vsol...)

Datasheet download: 9601D XPON 1GE-v7.pdf

Specification

Technical Item Details
PON interface

1 GPON/EPON port(EPON PX20+ and GPON Class B+)

Upstream: 1310nm, Downstream: 1490nm

SC/APC connector

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM
LAN interface

10/100/1000Mbps auto adaptive Ethernet interfaces.

10/100/1000M Full/Half, RJ45 connector
LED 4 LED, For Status of POWER, LOS, PON, LAN
Push-Button 2, for Function of Power on/off, Reset
Operating condition

Temperature : 0℃～50℃

Humidity :10%～90%(non-condensing)
Storing Condition

Temperature : -40℃～+60℃

Humidity :10%～90%(non-condensing)
Power supply DC 12V/1A
Power Consumption <3W
Net Weight <0.2kg

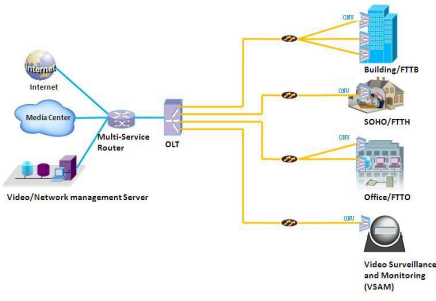

Application

  • Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
  • Typical Service:Broadband Internet access, IPTV, VOD.

FTTH FTTO FTTX Epon E Gpon Plastic Casing XPON 10/100/1000Mbps

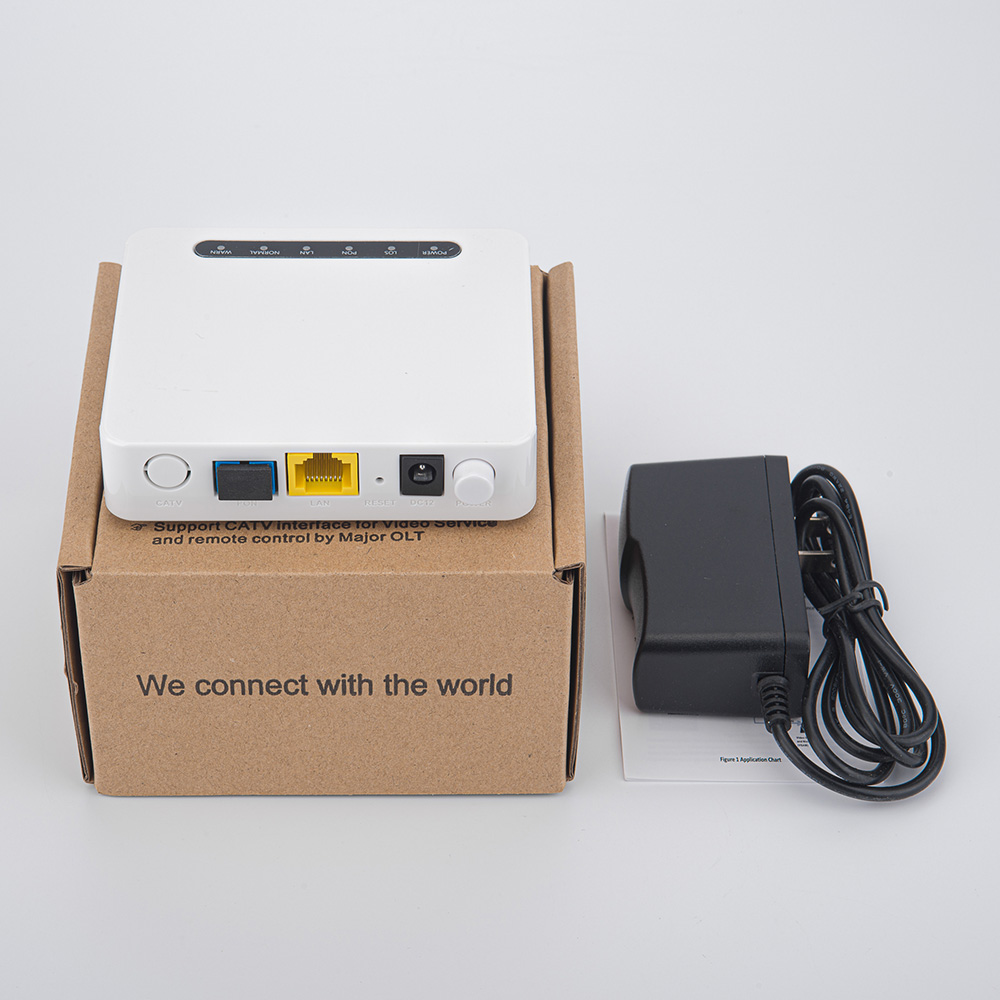

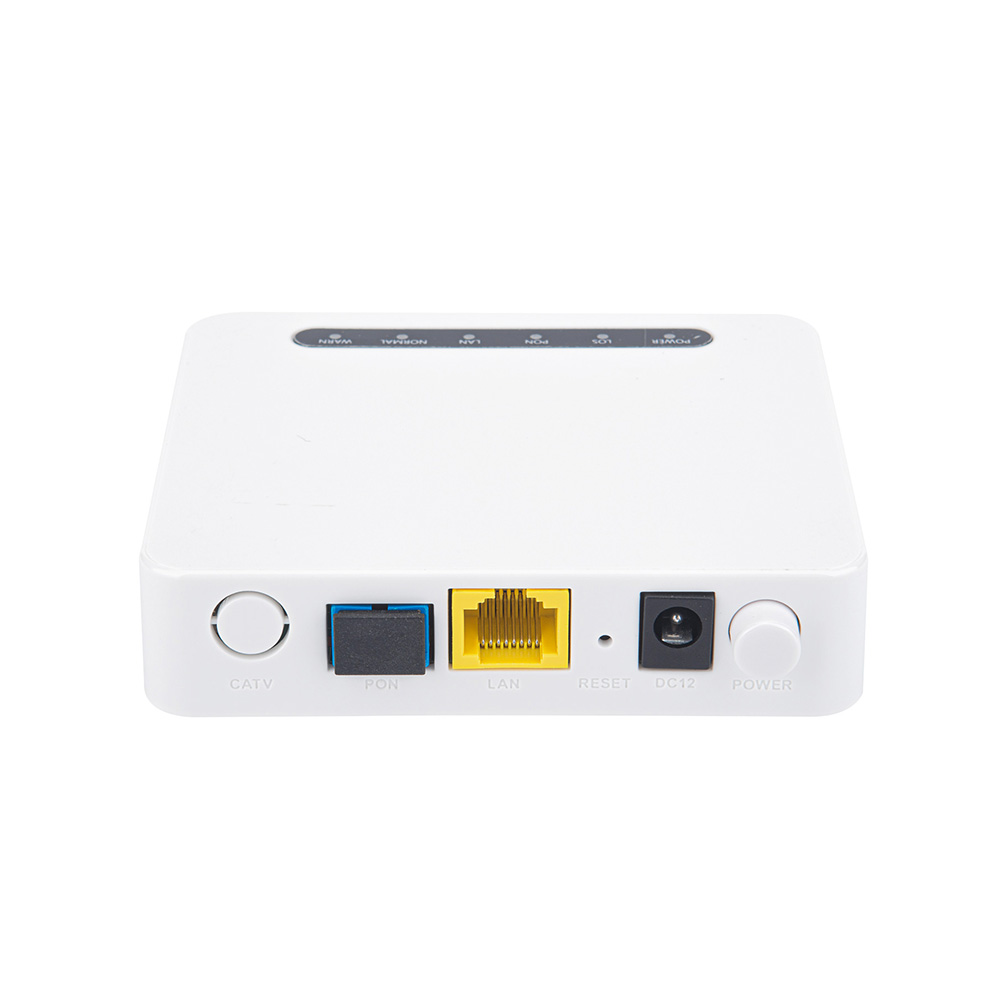

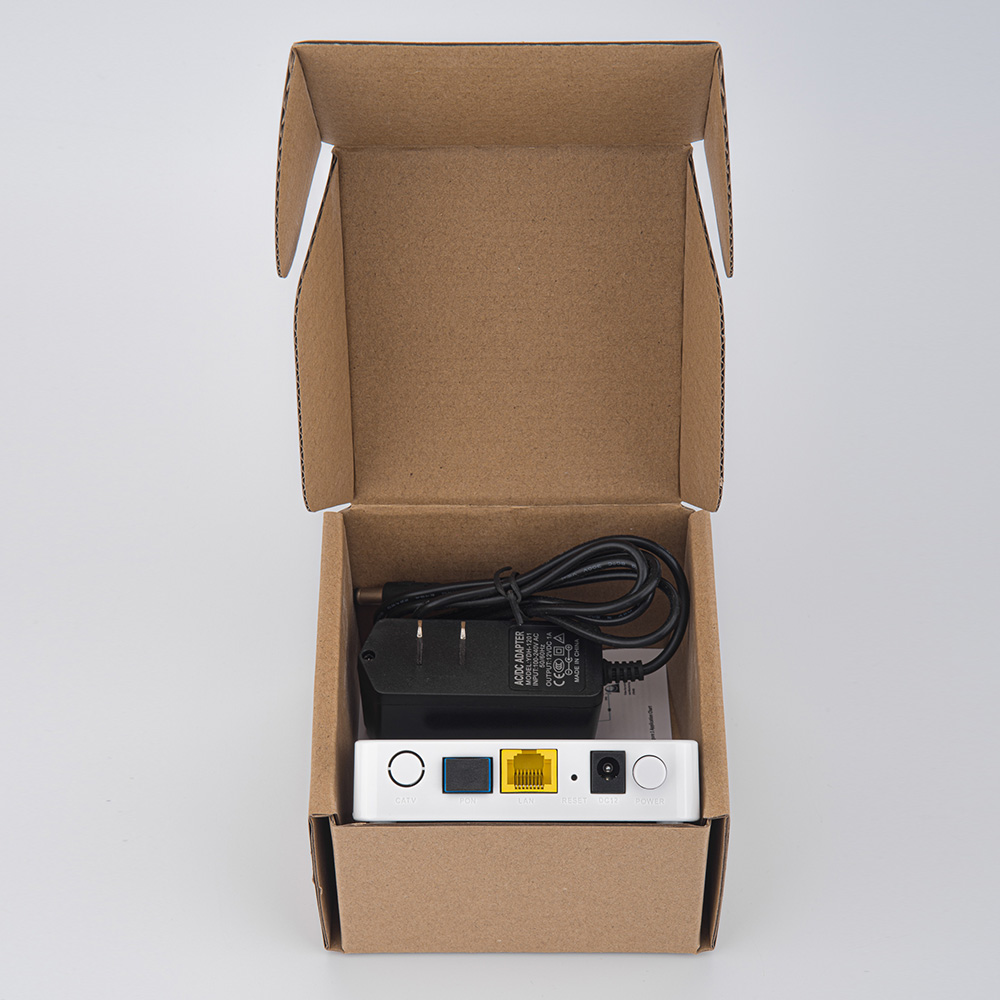

Appearance

FTTH FTTO FTTX Epon E Gpon Plastic Casing XPON 10/100/1000Mbps

FTTH FTTO FTTX Epon E Gpon Plastic Casing XPON 10/100/1000Mbps

FTTH FTTO FTTX Epon E Gpon Plastic Casing XPON 10/100/1000Mbps

Ordering information

Product Name Descriptions
1GE XPON 1*10/100/1000Mbps auto adaptive Ethernet(RJ45) , GPON interface, Plastic Casing, External power supply adapter
1GE EPON 1* 10/100/1000Mbps auto adaptive Ethernet(RJ45), EPON interface, Plastic Casing, External power supply adapter
